Wiring Schematics

EZGO TXT PDS


EZGO TXT DCS

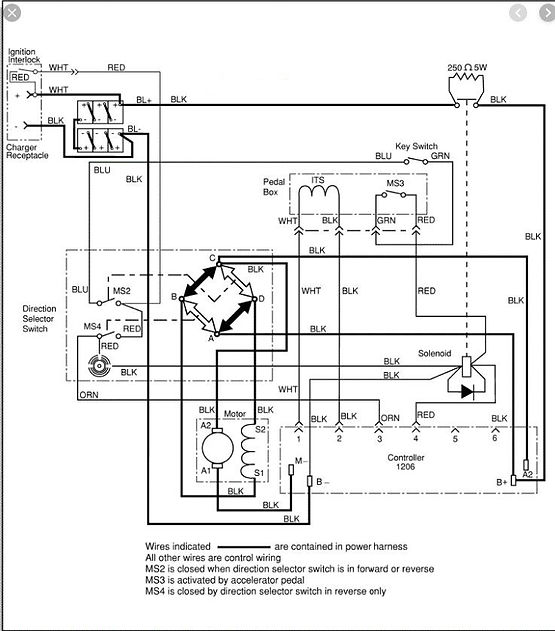

EZGO TXT SERIES

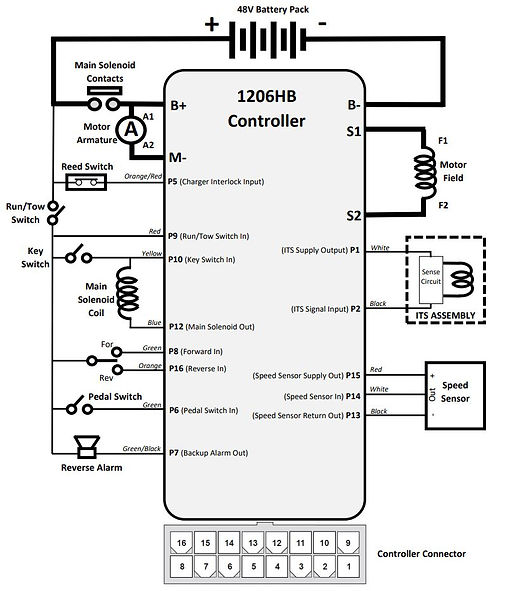

EZGO TXT 13+ 1206HB CONTROLLER OUTPUTS

ezgo1206hb13uptxtcontrolleroutputlabeled

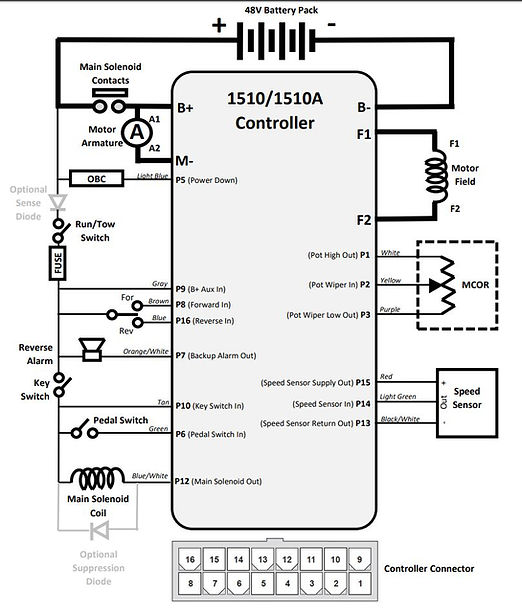

CLUB CAR PRECEDENT IQ CONTROLLER OUTPUTS


CLUB CAR PRECEDENT IQ          FULL SCHEMATIC

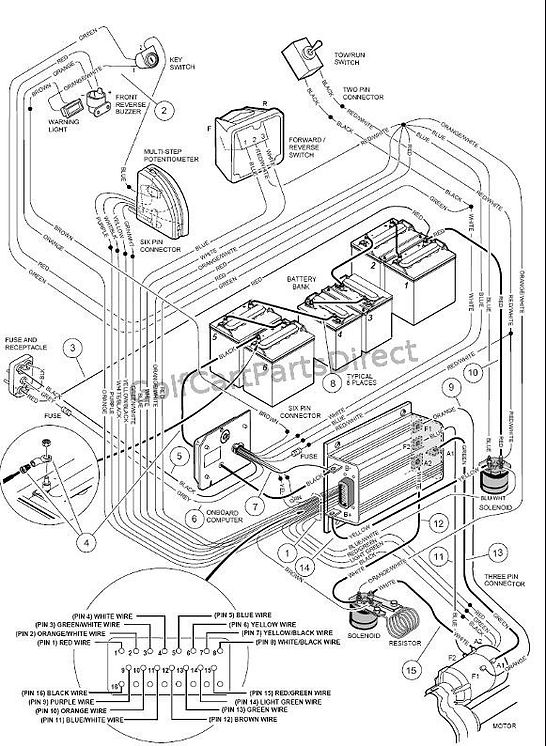

CLUB CAR DS POWERDRIVE REGEN

THANKS TO GOLF CARTS PARTS DIRECT


95-03 CLUB CAR DS POWERDRIVE SERIES

clubcards95-03 seriescolorcoded.JPG

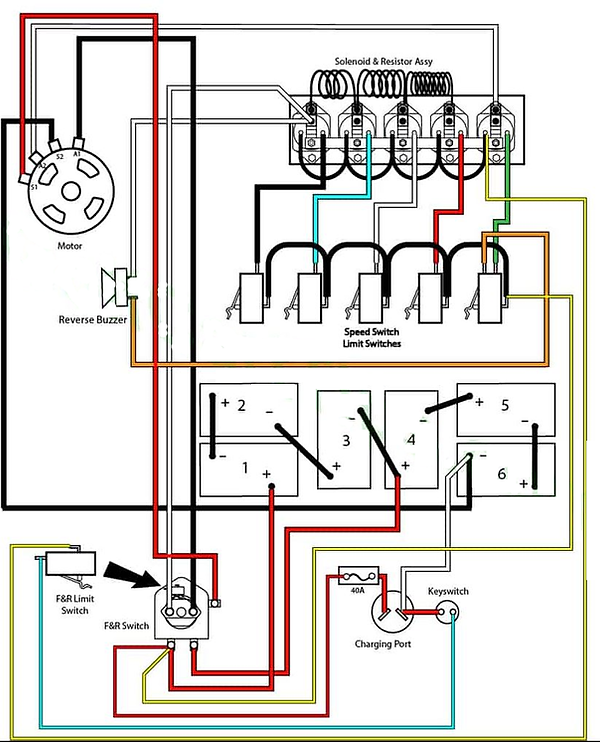

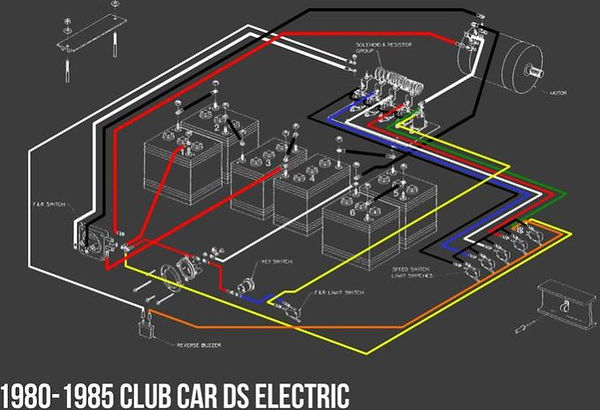

1986-1994 DS


1995-2002 DS 36V

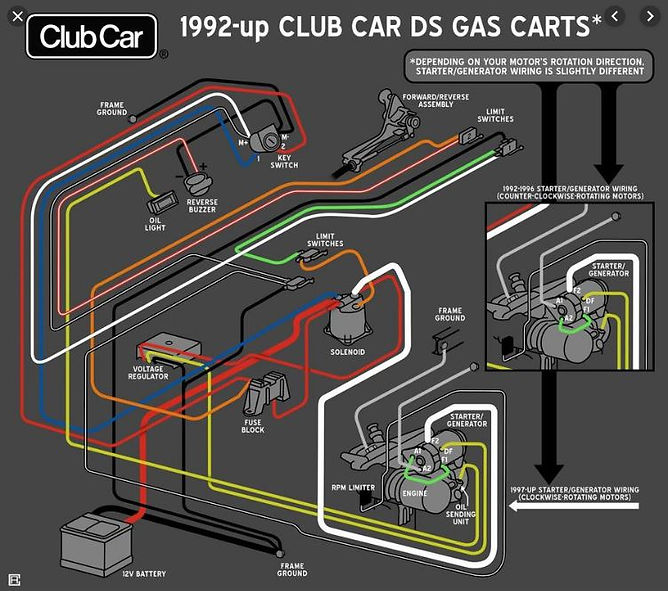

CLUB CAR DS GAS


CLUB CAR DS IQ


Yamaha G29 YDRE


Yamaha G19E


2007-2012 RXV


RXV Controller Plug Danaher


Curtis Controller RXV


RXV Curtis Controller

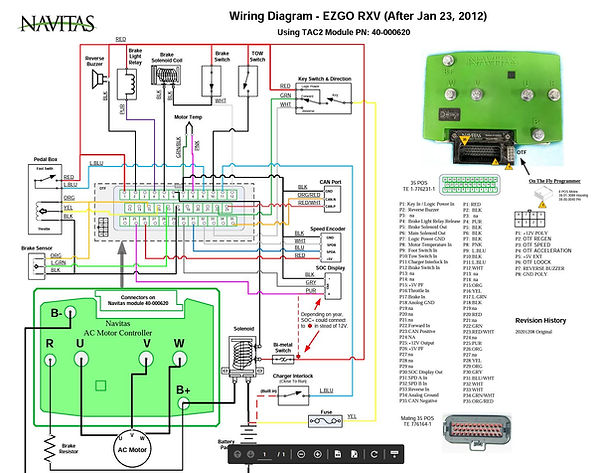

Via Navitas


RXV Curtis Factory Lithium


MORE DIAGRAMS TO BE ADDED AS TIME ALLOTS US
